Amplitude Versus Offset Case History
An AVO model and case history is shown below for a Cretaceous Glauconitic channel sand. It shows how easily AVO can be used to identify different geological scenarios.

AVO models (wet, gas, shale) and real data

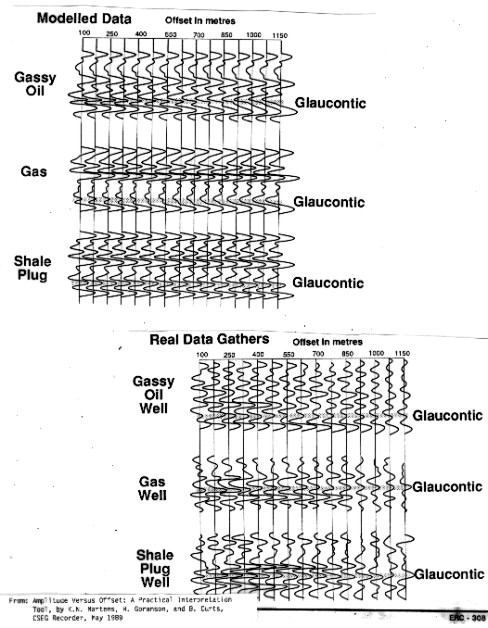

AVO models (oil, gas, shale) and real data

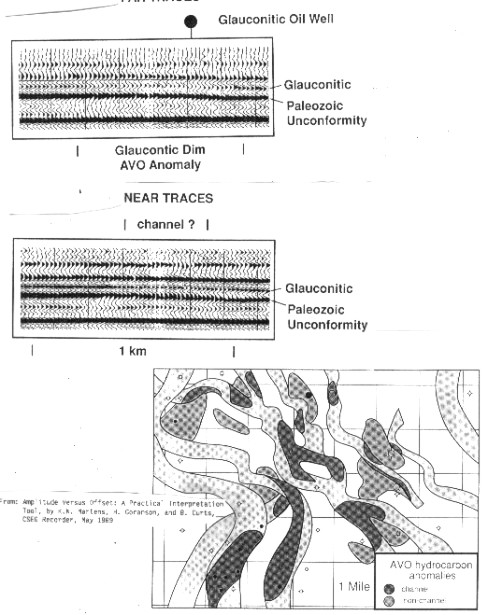

AVO model, seismic section, and final interpretation map
