You should know the basic rules for eyeball analysis of log curves to help you climb the “Ladder to Success”. Some people find the Log Response Chart (PDF) helpful, but it requires a mental assessment of 5 or 6 log curves simultaneously. This is a little tough for novice analysts and prone to error by even the most experienced.


The step by step procedure using Crain's Rules will reduce the complexity considerably and give you a straight forward path toward your goal. The illustration below is to give you a few of the basic rules in one single illustration. Further on there is a more

rves - the gamma ray (GR), resistivity, and a porosity indicating log (a sonic in this example). The GR is at the far left and the sonic is the left edge of the red shading. The resistivity and sonic have been overlaid to make it easier to see the shape of the two curves relative to each other.


Basic Rule "A": When GR (or SP) deflect to the left the zone is clean and might be a reservoir quality rock. When GR deflects to the right, the zone is usually shale (not a reservoir quality rock). There are exceptions to this rule, of course..


Basic Rule "B": Porosity logs are scaled to show higher porosity to the left and lower porosity to the right. Clean and porous is good, so compare the GR to the porosity log and mark clean+porous zones.


Basic Rule "C": Resistivity logs are scaled to show higher resistivity toward the right. Higher resistivities mean hydrocarbons or low porosity. Low resistivity means shale or water zones. So clean+porous+high resistivity are good. There are exceptions to this rule too.


The exceptions are what makes the job interesting. There are low resistivity pay zones, radioactive (high GR) pay zones, gas shales, oil shales, coal bed methane, and low porosity zones that produce for years. Some of these are shown in the illustration. See if you can figure out the logic behind each of the interpretations shown here before you move on to the more formal rules.


The more detailed Crain's Rules are described here with reference to the logs shown below.




Crain’s Rule “Minus 1”: Identify log curves available, and determine their scales.

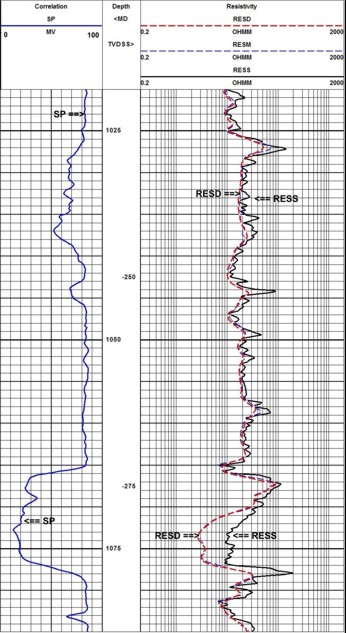

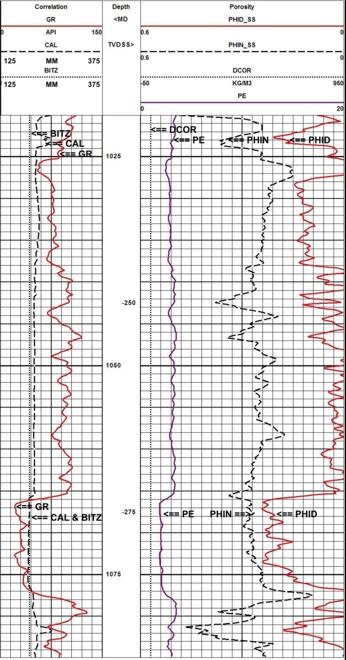

The left half of this image shows a resistivity log with spontaneous potential (SP) in Track 1 and shallow, medium, and deep resistivity (RESS, RESM, RESD) on a logarithmic track to the right of the depth track. The right half of the image shows a density neutron log with gamma ray (GR) and caliper (CAL) in Track 1. Photo electric effect (PE) is in Track 2 with neutron porosity (PHIN) and density porosity (PHID) spread across Tracks 2 and 3.

Crain’s Rule #0:
Gamma ray or SP deflections to the left indicate cleaner sands, deflections to the right are shaly. Draw clean and shale lines, then interpolate linearly between clean and shale lines to visually estimate Shale Volume (Vsh).

To find clean zones versus shale zones, examine the spontaneous potential (SP) response, gamma ray (GR) response, and density neutron separation. Low values of GR, highly negative values of SP, or density neutron curves falling close to each other usually indicate low shale volume. High GR values, no SP deflection, or large separation on density neutron curves normally indicate high shale volume.


Very shaly beds are not “Zones of Interest”. Everything else, including very shaly sands (Vsh < 0.50) and even obvious water zones, are interesting. Although a zone may be water bearing, it is still a useful source of log analysis information, and is still a zone of interest at this stage.


Crain’s Rule #1: The average of density and neutron porosity in a clean zone (regardless of mineralogy) is a good first estimate for Effective Porosity (PHIe).


Crain’s Rule #2: The density porosity in a shaly sand is a good first estimate for Effective Porosity (PHIe), provided logs are on Sandstone Units.


For zones of interest, draw bed boundaries (horizontal lines). Then review the porosity logs: sonic, density, and neutron. All porosity logs deflect to the left for increased porosity. If density neutron data is available, estimate porosity in clean sands by averaging the two log values. In shaly sands, read the density porosity. IMPORTANT: This is just an estimate and not a final answer.


Scale the sonic log based on the assumed matrix lithology. Mark coal and salt beds, which appear to have very high apparent porosity. Identify zones which show high medium, low, or no porosity. Low porosity, high shale content, coal, and salt beds are no longer “interesting”.


Crain’s Rule #3: Tracking of porosity with resistivity on an overlay usually indicates water or shale.


Low resistivity with moderate to high porosity usually indicates water or shale.

Crain’s Rule #4: Crossover of porosity on a resistivity log overlay usually indicates hydrocarbons.


High resistivity with moderate to high porosity usually indicates hydrocarbons.



Raw logs showing resistivity porosity overlay. Red shading indicates possible hydrocarbon zones. The density or density porosity (solid red curve) is placed on top of the deep resistivity curve (dashed red curve). Line up the two curves so that they lie on top of each other in obvious water zones. If there are no obvious water zones, line them up in the shale zones. If the porosity curve falls to the LEFT of the resistivity curve, as in Layers A and B, hydrocarbons are probably present.


To find hydrocarbon indications and obvious water zones, compare deep resistivity to porosity, by mentally or physically overlaying the density porosity on top of the resistivity log. High porosity (deflections on the density log to the left) and high resistivity (deflections to the right) usually indicate oil or gas, or fresh water. See red shaded area on resistivity track on the log above.


Layer A above is a shaly sand and has medium porosity. Layers B and C are clean sands and have high porosity. All other layers are shale with no useful porosity.


The average of density and neutron porosity in Layers B is 24 %; Layer C is 19%. This is close to the final answer because there is not  much shale in these zones. The average in Layer A is 16 % - much higher than the truth due to the influence of the shale in the zone. The density porosity is about 11%, pretty close to the core data. Therefore all our analysis must make use of shale correction methods.


Low resistivity and high porosity usually means water, as in Layer C. Known DST, production, or mud log indications of oil or gas are helpful indicators.


Layer B and Layer A show crossover when the porosity is traced on the resistivity log, so these zones remain interesting. In fresher water formations, it is often difficult or impossible to spot hydrocarbons visually. If it was easy, log analysts would be out of work!


Crossover on the density neutron log sometimes means gas (not seen on the above example). Watch for rough hole problems, sandstone recorded on a limestone scale, or limestone recorded on a dolomite scale, which can also show crossover – not caused by gas.


Water zones with high porosity and low resistivity are called “obvious water zones”. Fresh water may look like hydrocarbons, particularly in shallow zones. The lack of SP development will often help distinguish fresh water zones. Low porosity water zones may not be obvious.



Crain’s Rule #5: Approximate Water Saturation (SWa) in an obvious hydrocarbon zone is estimated from:  SWa = Constant / PHIe / (1 - Vsh)

where Constant is in the range from 0.0100 to 0.1200.
Use 0.0400 as a first try in sands, 0.0600 to 0.0800 in shaly sands, and 0.0250 in intercrystalline carbonates.


Water saturation is usually calculated from the Archie equation or a shale corrected version of it. This is not easy to do with mental arithmetic. An easier estimate of water saturation can be made in obvious hydrocarbon zones by using a method attributed to Buckles, and it is commonly used by reservoir engineers in a hurry.



Crain’s Rule #6: On Limestone Units logs, the density neutron separation for limestone is near zero, dolomite is 8 to 12 porosity units, and anhydrite is 15 or more. Sandstone has up to 7 porosity units crossover.


On Sandstone Units logs, separation for sandstone is near zero, limestone is about 7 porosity units, dolomite is 15 or more, and anhydrite is 22 or more.



Visual determination of lithology (in addition to identifying shale as discussed earlier) is done by noting the quantity of density neutron separation and/or by noting absolute values of the photo electric curve. The rules take a little memory work.


You must know whether the density neutron log is recorded on Sandstone, Limestone, or Dolomite porosity scales, before you apply Crain’s Rule #5. The porosity scale on the log is a function of choices made at the time of logging and have nothing to do with the rocks being logged. Ideally, sand-shale sequences are logged on Sandstone scales and carbonate sequences on Limestone scales. The real world is far from ideal, so you could find any porosity scale in any rock sequence. Take care!



 Sand – shale identification from gamma ray and density-neutron separation. Small amounts of density neutron separation with a low gamma ray may indicate some heavy minerals in a sandstone. Most minerals are heavier than quartz, so any cementing materials, volcanic rock fragments, or mica will cause some separation.  Both pure quartz (no separation) and quartz with heavy minerals (some separation) are seen.



 Lithology identification is accomplished by observation of density neutron separation and the gamma ray response, along with a review of core and sample descriptions.


The photoelectric effect is often a direct  mineralogy indicator.


Crain’s Rule #7: PE below 1 is coal, near 2 is sandstone, near 3 is dolomite or shale, and near 5 is limestone or anhydrite. The high density (negative density porosity) of anhydrite will distinguish anhydrite from limestone. High gamma ray will distinguish shale from dolomite.






ROCK  N–D   N–D     PE    GR
           (SS)   (LS)

SAND      0      - 7       2       LO

LIME       7         0      5       LO

DOLO    15+      8+     3       LO

ANHY     22+     15+    5       LO

SALT     - 37     - 45   4.5      LO

SHLE     20+     13+   3.5      HI

Memorize this table, or keep a copy in your wallet. Practice the skill and use it in your daily work.


   1. Find the evidence
   2. Assess the evidence
   3. Postulate all possibilities
   4. Eliminate the impossible
   5: Select the answer that fits best with the evidence


Remember: logs are not perfect and these rules are not perfect. Adjust the rules to suit your experience. Mineral mixtures are common, so think in terms of what is possible in each case.


On the log at the right, the evidence and conclusion is shown for 6 layers with different lithology.

This is a LIMESTONE scale log


RULE EXCEPTIONS: High GR log readings coupled with density neutron log readings that are close together, are a sign of radioactive sandstone or limestone. To tell radioactive dolomite zones from shale zones, use a gamma ray spectral log, since the density neutron log will show separation in both cases. The PE value can help differentiate between radioactive dolomite and chlorite shale but not between dolomite and illite rich shale. High thorium values on the gamma ray spectral log indicate the shale.



Crain’s Rule #8:
If it is porous, it is probably permeable. A quicklook equation for permeability in intergranular or intercrystalline porosity is: Perm = 100 000 * (PHIe^6) / (Sw^2).


To find signs of permeability, look for indications of porosity, mudcake shown by the caliper, separation on the resistivity log curves, known production or tested intervals, sample descriptions, and hydrocarbon shows in the mud.


A quicklook equation for permeability is:
     Perm in milliDarcies = 100 000 * (Porosity ^ 6) / (Water Saturation ^ 2)


Crain’s Rule #9:
If the logs are noisy, blame it on fractures.


To check for indications of fractures, look for sonic log skips, density neutron crossover in carbonates, hashy dipmeter curves, hashy resistivity curves, or caved hole in carbonates.


Crain’s Rule #10:
Check your work and revise your assumptions, then refine rules for each project.

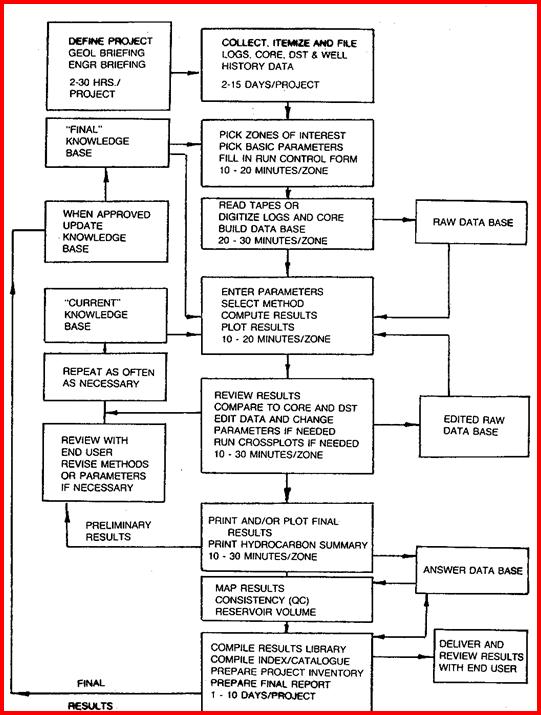

Computer systems are often provided to do the arithmetic and plot the answers. A diagram depicting the analysis steps in more detail is shown below. These steps cover only the data processing sequence involved in getting answers from the analysis of the raw data. Both novice and experienced analysts should review these illustrations to gain an understanding of how complex the processing and communication paths really are. If you use computerized log analysis, you should know how the program works.

Whether you use computer analysis software, spreadsheets, or calculators, you will be following the flow chart in this illustration. Looks complicated, but if you can see the step-by-step procedure streaming down the middle, and the feedback loops on both sides, you will understand the scope of the petrophysicist's job.


In any step by step procedure, there is a need to calibrate each step as it is performed. This reduces labor and dead end processing paths. The control data is usually the core, test, production, geological and engineering data available from a well or its nearby offsets.


Unfortunately, much of the needed control data is not available for many zones, so calibration is seldom perfect. Even when calibration data is available, the match to log analysis results may be weak, so be prepared to use good judgment to modify or reconcile your initial assumptions to improve the comparison.

Some "ground truth", such as core data, has its own data quality problems. It cannot and should not be used indiscriminately to force log analysis results to some preconceived solution.
